Hairline Commercial Stainless Steel Passenger Elevator. 5 Floors 5 Stops 1250kg Stainless Steel 18 Passenger Elevator Lift.

Whether you are a property developer, hotelier, hospital, residential property owner, mall or commercial company, we can design and install passenger lifts into a variety of different sites and builds.

Our passenger elevator have high speed performance and heavy duty, the load capacity can be 450-1600kg for 4-22 people. Widely applicable for apartment, residential, office building, hotel, shopping center, traffic hubs, and public buildings.

Whether it is a small shaft, heavy loading, high speed, or low headroom, you can always find best solution in HOMELIFT ELEVATORS.

Product Highlights
Usage Passenger/Commercial
Material Stainless Steel
No. of Floors/Stops: 5/5/5
Capacity 18 persons
Max Load 1,250 Kg
Operating Height 5 floors
Type: Machine Roomless (MRL)
Shaft Minimum: 1700mm(W)*1800mm(D)
Door: 800mm*2,250mm Center Open
Pit: 1,300mm
Floor Height: 3,800mm Each
Travel: 20,500mm
Overhead: 4,000mm
Car Dimension: 1,100(W)*1,400mm(D)
Application: Office/Hotel/Commercial/Mall/Others
Longer life High performance
Maximum speed(m/s) 1 m/s
After Sales Service Provided

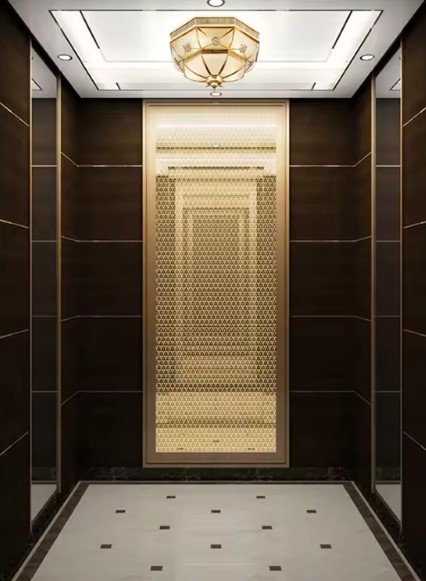

Cabin finish Hairlines Stainless Steel
Warranty 12 months
Drive Type AC
Drive Technology Geared Traction,
Door Style Automatic
Main Power 380V, 3-Phase 50Hz
Lighting Power 220V, 3 Phase 50Hz

Perfect details create ultimate product experience.
High cost performance, saving big cost.
Perfect customer experience, saving your value time.
Applications
• Residential Buildings
• Shopping Centers
• New Constructions
• Hotels, Hospitals
• Offices
• Stretcher Lifts
• High-rise Buildings
• High traffic

Advantages
Both for new buildings and existing shafts with
reduced pit and headroom.

Versatility:
The machine room is not necessary, providing greater design freedom for the building. Despite which is the new construction shaft lift par excellence, is adaptable to an infinite number of shafts. Special shafts.

Flexibility / Adaptability:
Customized to each client. Wide range of loads, sizes and speeds. Robust, resistant and reliable

Comfort:
maximum comfort level is guaranteed during
movement with minimal acoustic designs

Great durability:
Reduced maintenance. The device has a long life

Easy installation:
Plug and play, developed design. Self-supporting bed plate supported on the guides themselves.

We are conversant with various brands such as FUJI, Schindler, KONE, MP, Fujitec, Hyundai, OTIS, TK, Toshiba, Stannah, Dazen, Canny, Hitachi, ThyssenKrupp, Vestas, Mitsubishi.

We have professional technical team and installation guide service. If you would like to know more detailed installation steps, please feel free to contact us for installations in Lagos, Abuja, Port Harcourt, Kano and other cities in Nigeria and other West African Countries such as Benin Republic, Togo, Ghana, Chad, Cameroon.
